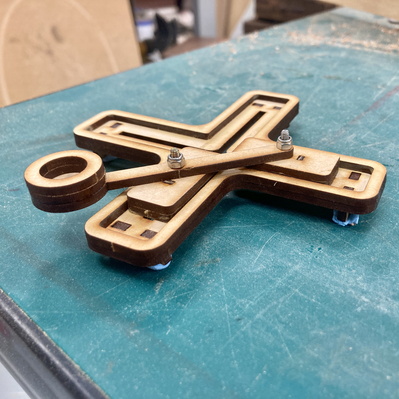

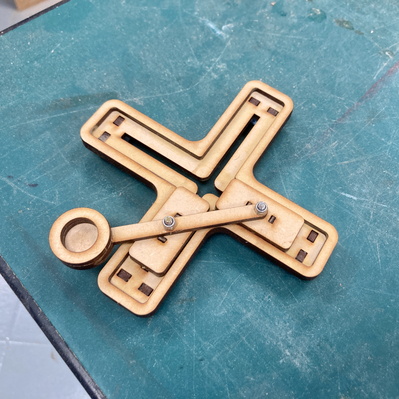

Trammel of Archimedes
Designed by
Noviceworkshop
$ 3.17
Ador, beamo, Beambox, Beambox Pro, Cricut, Glowforge, HEXA, Lazervida, Silhouette, Others
Easy
Time to Spend |Less Than 30 Minutes
Finished Size |13 x 13 x 1 cm3
SVG
Description |
●introduction: archimedes' compass is a mechanism invented by ancient mathematicians. it can make elliptical movements. it can be used in woodworking to cut elliptical wooden boards. you can refer to the video! ●design process video: https://youtu.be/vqgf0tn6gru ●materials: 1.3mm wooden board (dense board) 2. m3x20mm screws 2 pieces 3. m3 nylon nuts x2 4. m3 gaskets x2 5. woodworking glue/three-second glue 6. wax (reduce friction) ●original machine: qiaoshi brand 80w ●reference power: 1. black line: cut_speed 17 / power 98 2. red: fill scan_speed 150 / power 25
