Modular mechanism-1-move up and down
Designed by
Noviceworkshop
$ 4.13
Intermediate
Time to Spend |30 Minutes - 1 Hour
Finished Size |10 x 10 x 20 cm3
AI
Description |

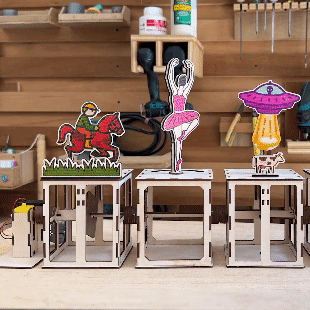

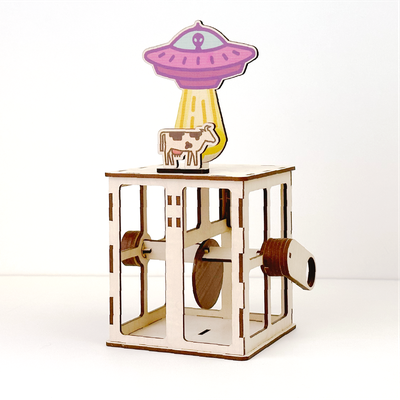

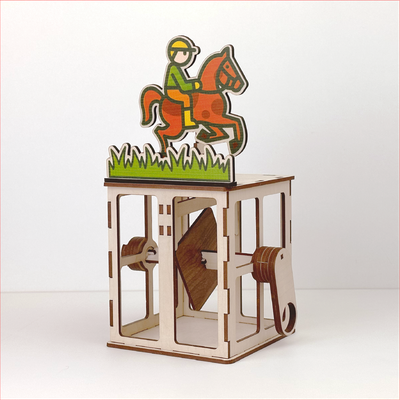

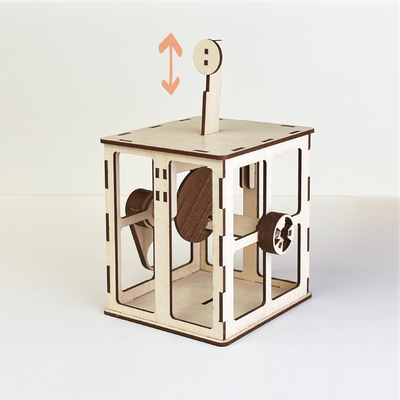

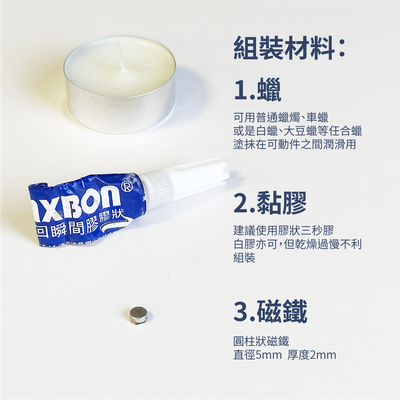

●introduction: this work uses a cam and a follower to make up and down reciprocating movements. you can attach your characters and accessories to the mechanism to create your own story. the design of the modular series allows multiple mechanisms to be connected in series through connectors. multiple mechanisms can operate together. they can be rotated by handles or rotated by a motor with a motor frame. ●assembly tutorial: https://youtu.be/svd-0qqt6lm ●material: 1. 3mm or 2.7mm wood board (dense board or plant fiber version, the 2.7mm or 3mm in the file name refers to the thickness of the board, please choose the corresponding thickness board for processing) 2. magnet (diameter 5mm, thickness 2mm) 3. glue (it is recommended to use gel three-second glue. liquid three-second glue tends to drip everywhere. woodworking glue or white glue dries too slowly, which is not conducive to assembly) 4. wax (any wax can be used, apply between movable parts to help lubricate) ●originally used machine: flux ador & qiaoshi 80w ●qiaoshi brand reference power: 1. black line: cut off_speed 17/power 98 2. red: routing_speed 150 / power 25 icon download from the noun project surfing by victoruler wave by agung rama horse riding by hana galas grass by arie
