Gear tutorial
Designed by
Noviceworkshop
$ 3.17
Easy
Time to Spend |Less Than 30 Minutes
Finished Size |15 x 10 x 10 cm3
SVG, STL
Description |

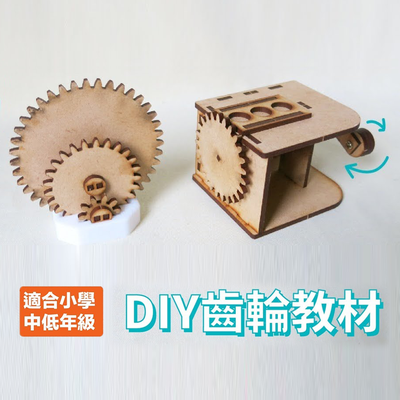

●introduction: this teaching material can replace gears of different sizes to rotate, allowing students to understand the difference in rotation speed between large and small gears. ●assembly, please refer to the video: https://youtu.be/z4i6b72rrbo?si=j40pcktpivqlqyer ●gear tutorial file name: gear_tutorial_v1 materials required: 1. 3mm dense board 2. a 5mm square piece of wood is about 180mm long 3. m3 screws 20mm, m3 nuts, m3 washers 4. woodworking glue, sewing oil (optional) ●small version of gear tutorial file name: gear_tutorial_small_v1 materials required: 1. 3mm dense board 2. m3 screws 20mm, m3 nuts, m3 washers 3. woodworking glue, sewing oil (optional) ●gear placement rack file name: gear_stand illustrate: 1. only available for the reduced version of the three gears 2.this is a 3d printing file ●originally used machine: qiaoshi 80w ●reference power: speed 17 / power 98
